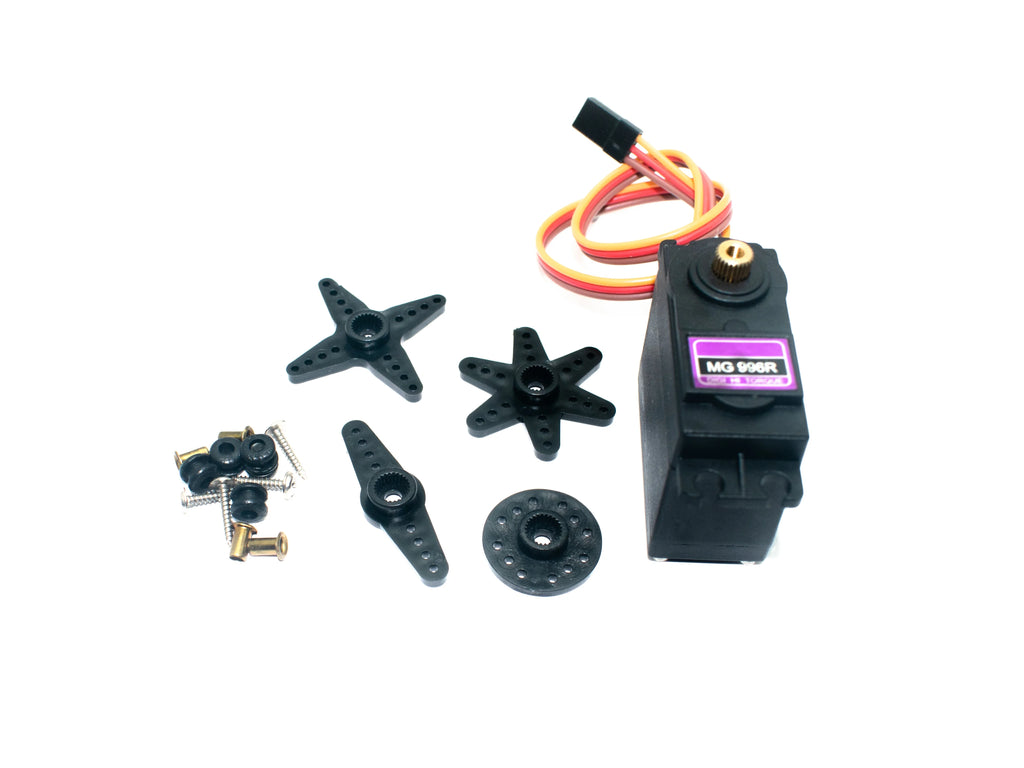

Tower Pro MG996R Metal Gear Servo Motor (360° Rotation)

Tower Pro MG996R Metal Gear Servo Motor (360° Rotation)

SKU Code: # CC47

Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Description

The metal gearing in this Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (360 Degree Rotation) results in an extremely high 10kg stalling torque in a small size. MG996R is an upgraded version of MG995. It has some extra features like shock-proofing, redesigned PCB, and an IC control system. The gearing and motor have also been upgraded to improve dead bandwidth and centring.

Specification
Operating Voltage 4.8V-7.2V
Running Current 500mA-900mA
Stall Current 2.5A @6V
Temperature Range 0°C to 55°C
Control System Analog
Operating Angle 360°
Required Pulse 900µs-2100µs
Operating Speed 0.17s/60° (4.8V), 0.14s/60° (6V)
Dead bandwidth 5µs
Wire Length 30cm
Stall Torque 9.8kgf.cm (4.8V), 11kgf.cm (6V)
Size 40.6x19.6x43mm
