Description

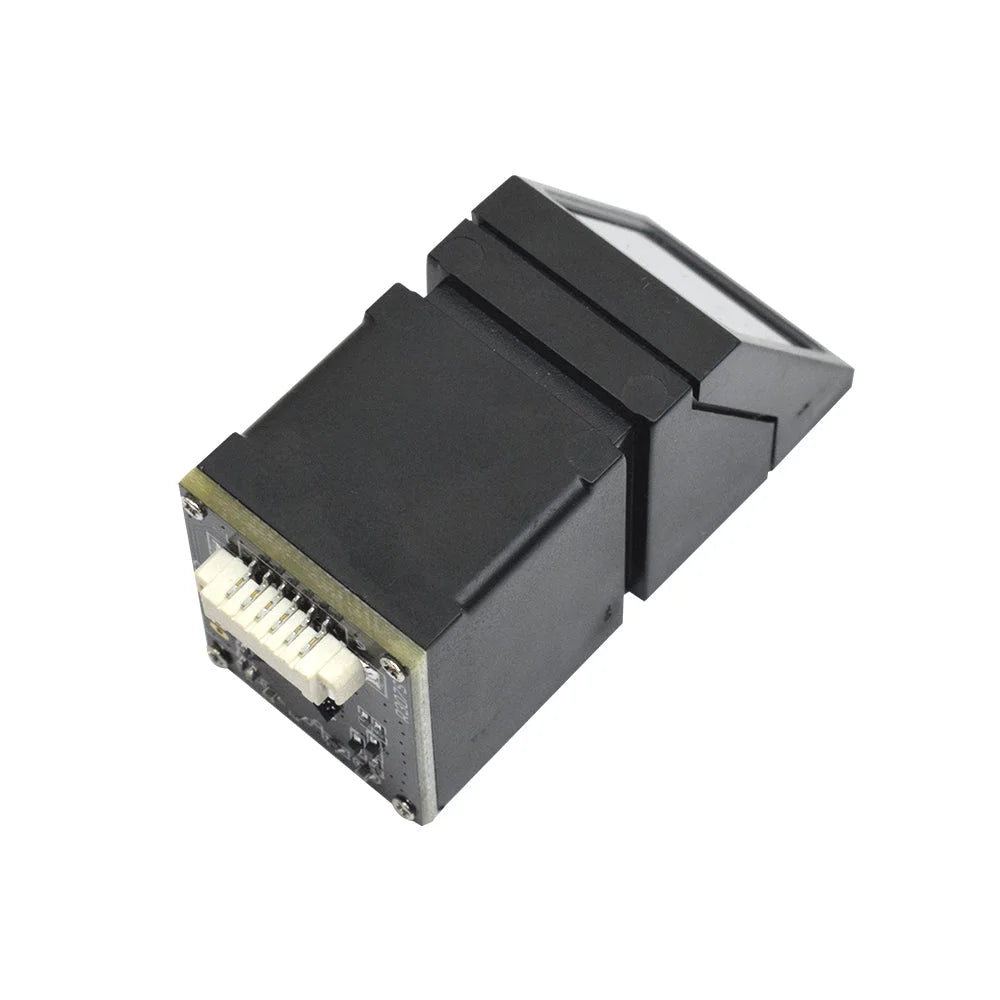

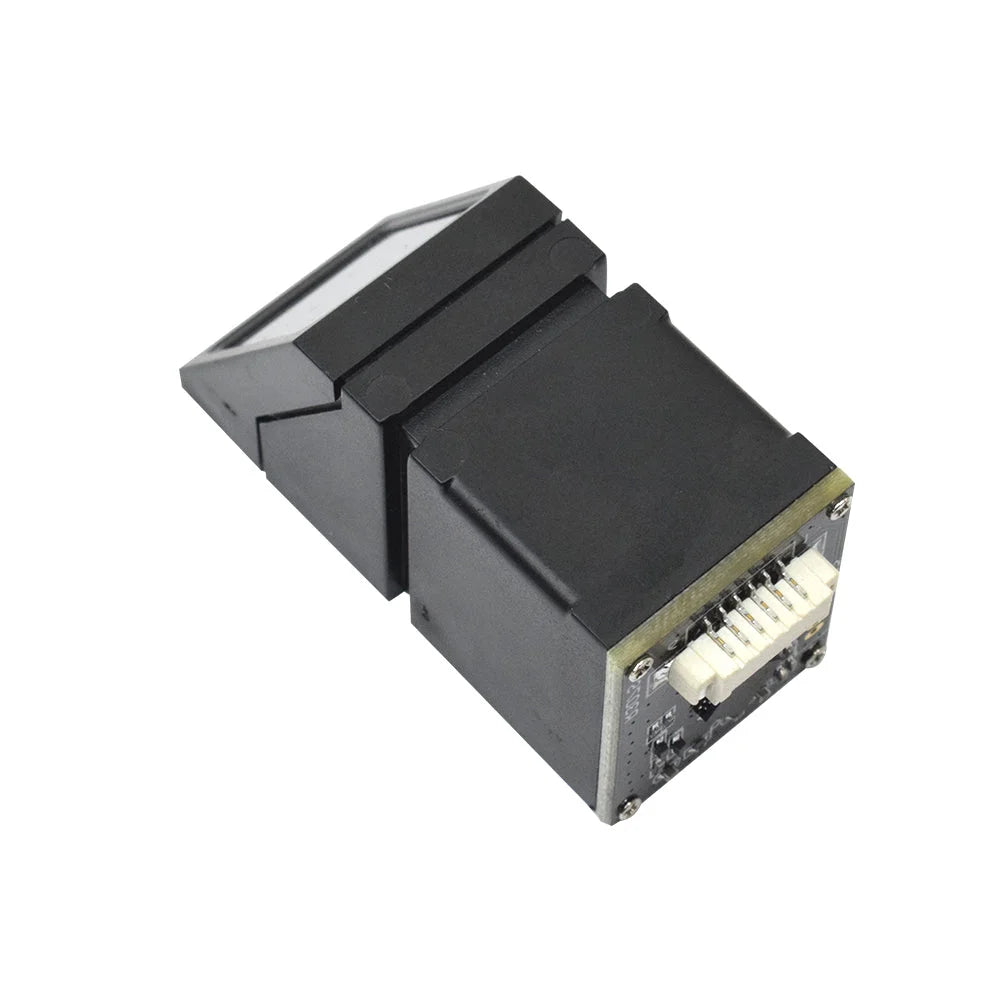

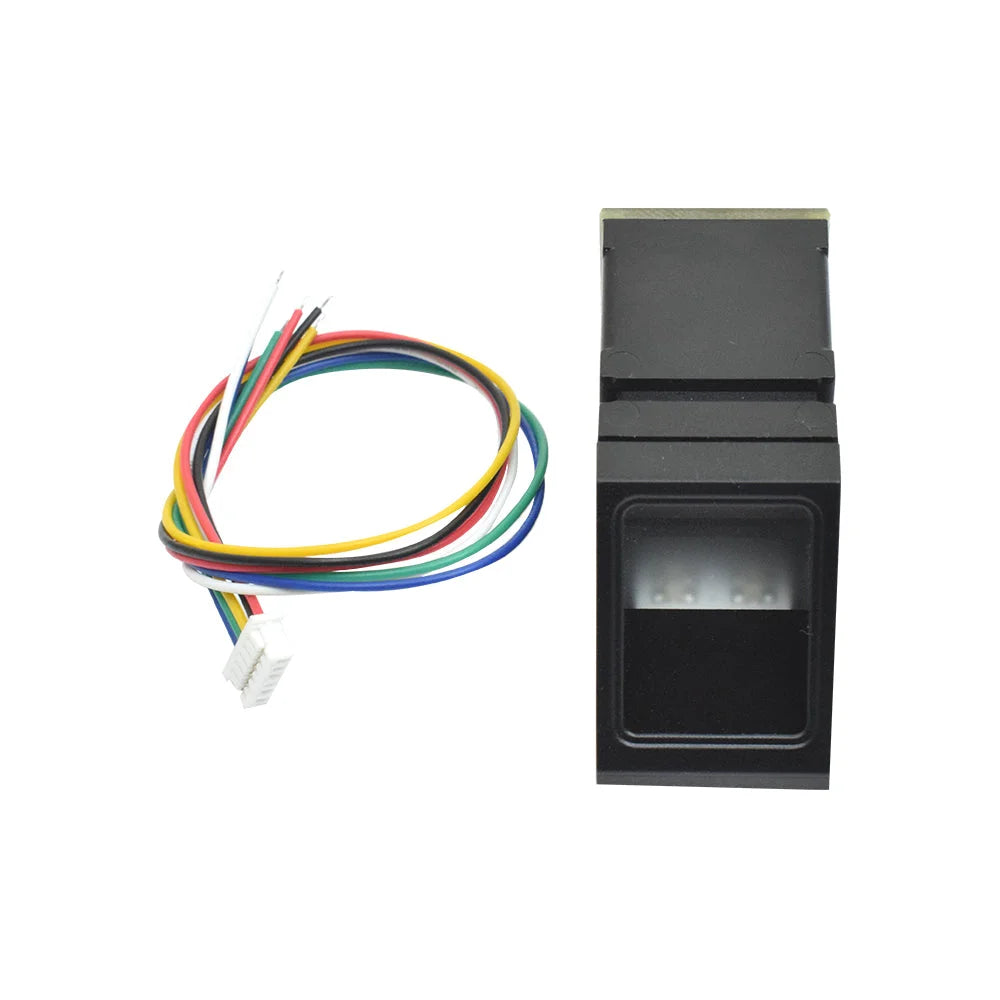

The R307S (1000 Prints) Fingerprint Module includes an optical fingerprint sensor, a high-speed DSP processor, a high-performance algorithm for fingerprint alignment, high-capacity FLASH chips, and other hardware and software components. It has a simple structure, stable performance, and features functions for fingerprint entry, image processing, fingerprint matching, searching, and template storage, among others. A fingerprint sensor module called R307 has a TTL UART interface. The FP module can directly interface with a 3v3 Microcontroller. The user can configure the module in 1:1 or 1: N mode and store the fingerprint data there. A level converter (like MAX232) is needed for the PC interface. The RS232 interface is a TTL level; the default baud rate is 57600, can be changed, refer to a communication protocol, and can And microcontroller, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected to directly. The R307 fingerprint module has two interfaces: TTL UART and USB 2.0. USB 2.0 interface can be connected to the computer. Requires connecting the computer for level conversion.
Pin Detail:
- Supply voltage: DC 4.2 ~ 6.0V
- Supply current: Working current: 50mA (typical) Peak current: 80mA
- Fingerprint image input time: <0.3 seconds
- Characteristic file: 256 bytes
- Template file: 512 bytes

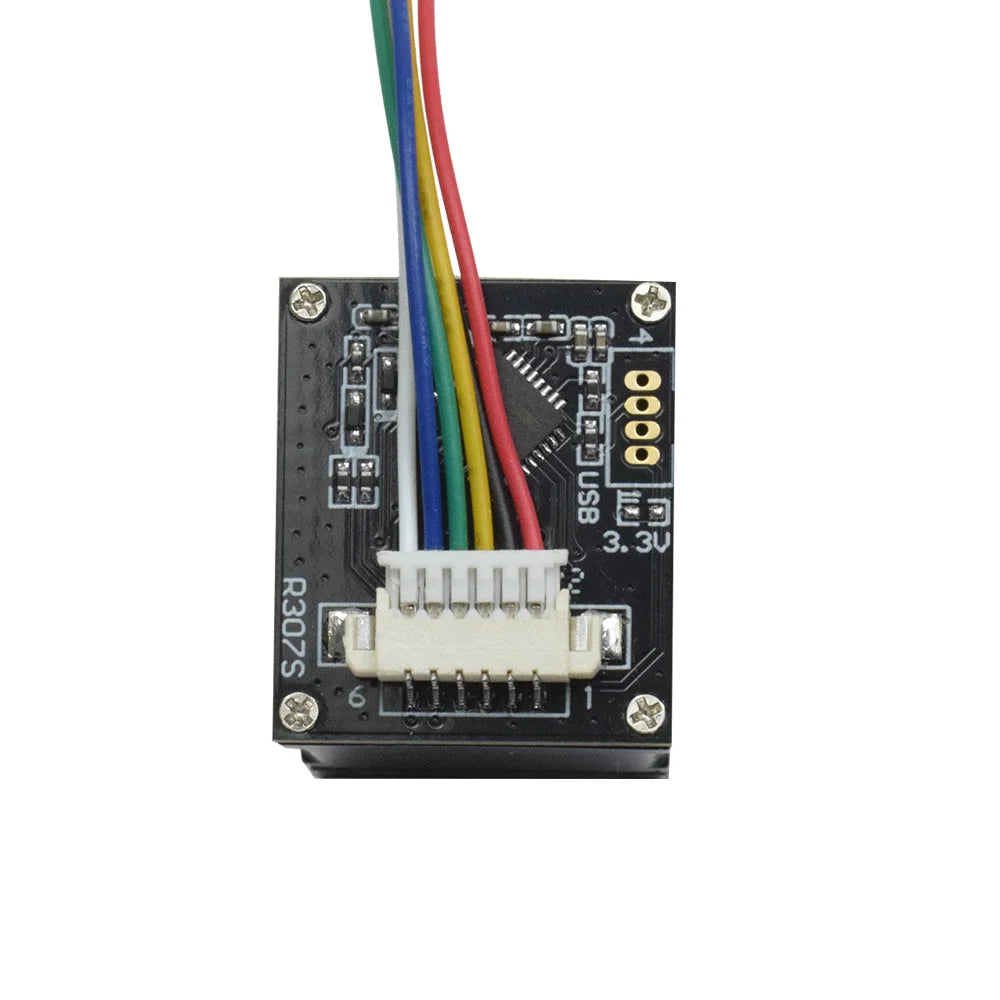

- It has six pin connector
Specification
Model | R307S |
Type | Fingerprint |
Voltage | 3.3V |
Operating Current | 50mA |
Screen Size | 16mmx20mm |
Dimensions | 48mmx24mm20mm |
